BOE NV133FHM-N43 Application Details
| Basic Detail : | Manufacturer | | Model Name | NV133FHM-N43 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | BOE0669 |
| Panel Size | 13.3 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
BOE NV133FHM-N43 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) |
BOE NV133FHM-N43 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.051×0.153 mm | Pixel Pitch(W×H) | 0.153×0.153 mm [166PPI] |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | - |
| Bezel Opening | - | Overall Depth | 2.85 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Fixation : | Face mounting holes (8 pcs) on up, down slugs |
| Other Detail : | Mass | 250g (Max.) | Surface |
BOE NV133FHM-N43 Interface Details
| Signal Electrical : | Input Current | 300mA (Typ.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 1.0/1.2W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P30 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020L |
BOE NV133FHM-N43 Lightting Details
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
| Exchange | - | Amount | 9S6P | Life | 15K(Min.) (Hours) |
| Lamp Electrical : | Input Current | 19.5mA (Typ.) | Input Voltage | 26.1V (Max.) |
| Interface Features : | Position | - | Physical Type | Included in signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | - | Input Voltage | 6.0/12.0/21.0V (Min./Typ./Max.) |
| Consumption | 2.3W (Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, net weight of 250g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV133FHM-N43 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV133FHM-N43 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

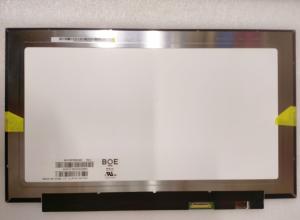

NV133FHM-N43 BOE 13.3" 1920(RGB)×1080, 350 cd/m² INDUSTRIAL LCD DISPLAY Images
|
