EE101IA-01D Innolux 10.1" 1280(RGB)×800, 0 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EE101IA-01D Innolux 10.1" 1280(RGB)×800, 0 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : Innolux

Model Number : EE101IA-01D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : Innolux

Diagonal Size : 10.1"

Resolution : 1280(RGB)×800, WXGA 149PPI

Brightness : 0 cd/m²

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Environment : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Innolux EE101IA-01D Application Features

Basic Information : Brand Name Model Name Type Model Alias
EE101IA-01D a-Si TFT-LCD , CELL -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-20 ~ 70 °C -30 ~ 80 °C

Innolux EE101IA-01D Mechanical Features

Screen Size : 10.1"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×800, WXGA RGB Vertical Stripe 0.0565×0.1695 mm 0.1695×0.1695 mm [149PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
216.96×135.6 mm - 223.95×144.24 mm 1.07±0.1 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Plate Thickness
Flat Rectangle 16:10 Landscape type 0.40+0.40 mm
Other Spec : Mass Panel Cover Surface Treatment
80.0g (Typ.) - Hard coating

Innolux EE101IA-01D Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
0 cd/m² IPS, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 10/15 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6737K 16.7M (8-bit) X:0.310; Y:0.320
Transmissivity : 5.85% (Typ.)

Innolux EE101IA-01D Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
No B/L - - - - -
Interface Features : No B/L Driver State Physical Type Interface Position
No Included in signal interface

Innolux EE101IA-01D Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
2.5/8.2/15/-13V (Typ.)(VDD/AVDD/VGH/VGL) 31/22/1.4/1.4mA (Typ.)(IDD/AIDD/IGH/IGL) 0.31W (Typ.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
196479-40041-3 1 pcs 40 pins

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 223.95(W)×144.24(H)×1.07(D) mm, with surface treament of Hard coating, net weight of 80.0g (Typ.), utilizing 0.40+0.40 mm mm plate. As a IPS, Normally Black, Transmissive CELL product, EE101IA-01D can provides 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product have no backlight, external backlight driver is additionally needed. EE101IA-01D utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.5/8.2/15/-13V

EE101IA-01D Innolux 10.1" 1280(RGB)×800, 0 cd/m² INDUSTRIAL LCD DISPLAY


Wholesale EE101IA-01D Innolux 10.1" 1280(RGB)×800, 0 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

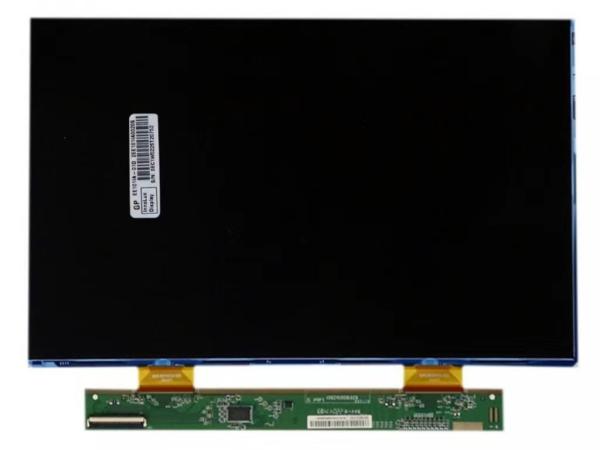

EE101IA-01D Innolux 10.1" 1280(RGB)×800, 0 cd/m² INDUSTRIAL LCD DISPLAY Images
